Assembly

The following video gives an overview of the robot's components and how it will be assembled:

More detailed assembly instructions are found in the next few sections. The parts are listed in the components and the 3D printed parts. The printed parts need the Remo STL files:

Get the Remo STL files

Frame

The frame is assembled in 14 steps. In each drawing, the dashed magenta lines show where a part goes. Steps 2 to 9 work on the bottom of the chassis, so turn it upside down after step 1.

Step 1: Threaded inserts

Step 1: four threaded inserts go into the corner posts on top of the chassis

Press the four M2 brass threaded inserts into the holes of the corner posts on top of the chassis, for example with a soldering iron. The decks are screwed into these inserts later, so they can be swapped often without wearing out the plastic threads.

Parts: chassis, 4 × M2 brass threaded insert

Step 2: First motor

Step 2: the first motor goes into its pocket on one side of the chassis

Turn the chassis upside down and place the first DG01D-E motor in its pocket on one side.

Parts: 1 × DG01D-E hobby motor with encoder

Step 3: Second motor

Step 3: the second motor goes into the pocket on the other side

Place the second motor in the pocket on the other side.

Parts: 1 × DG01D-E hobby motor with encoder

Step 4: Motor screws

Step 4: two long screws through each side wall hold the motors, with an M3 nut on the inside of each motor

Fix each motor with two M3 × 25 mm screws through the side wall of the chassis and the motor. On the inside, put an M3 nut on each screw, in the opening of the motor. The drawing shows the nuts for the far motor; the other motor gets the same two nuts, hidden from this angle.

Parts: 4 × M3 × 25 mm screw, 4 × M3 nut

Step 5: Motor driver

Step 5: the motor driver board goes between the motors

Place the motor driver board between the two motors.

Some boards come with the screw terminals and pin headers loose, others with everything soldered on. If yours are loose, solder them on before this step. The drawings show the board without them. The cables are connected in step 7, once the board is screwed in.

Parts: Adafruit DC Motor (+ Stepper) FeatherWing

Step 6: Motor driver screws

Step 6: four screws hold the motor driver board

Fix the board with four screws.

Parts: 4 × M2 self-tapping screw

Step 7: Motor cables

Step 7: in the Fritzing view, the red and brown wire of each motor go to the screw terminals on the right side of the motor driver

Connect the motors to the motor driver as shown in the Fritzing view above (also on the Electronics page):

  • Screw the red (M+) and brown (M−) wire of each motor cable into the M3/M4 terminal block of the board. The firmware expects the left motor on M4 and the right motor on M3 (MOTOR_LEFT and MOTOR_RIGHT in diffbot_base_config.h, see low-level base controller). If a wheel turns the wrong way later, swap its red and brown wire.
  • The other four wires of each motor cable (blue G, green H1, yellow H2, orange V) belong to the encoder. They go to the Teensy on the breadboard, not to the motor driver. Keep each encoder with its motor: H1 and H2 of the left motor go to Teensy pins 5 and 6, those of the right motor to pins 7 and 8.

The Fritzing view pairs the motors the other way round

In the Fritzing view, the motor on M3 has its encoder on pins 5 and 6. The firmware reads pins 5 and 6 for the motor on M4. Follow the text above until the diagram is fixed.

The battery cable follows in step 10. The Fritzing view also shows the I2C wires from the board to the Grove I2C hub.

Parts: 2 × motor cable (comes with the motors)

Step 8: Caster

Step 8: the caster goes into the round opening of the chassis

Put the caster ball into the printed caster base and shroud, then place the caster in the round opening of the chassis.

Parts: caster base and shroud (printed), 1 × caster ball (25.4 mm)

Step 9: Caster screws

Step 9: four screws hold the caster

Fix the caster with four screws.

Parts: 4 × M2 self-tapping screw

Step 10: Battery pack

Step 10: the battery pack slides into the compartment under the top plate

While the chassis is still upside down, connect the cable of the empty battery pack to the 2-pin power terminal of the motor driver: black to − and red to +, as marked on the board. Then turn the chassis right side up again and slide the battery pack into the compartment under the top plate. Leave the batteries out until all the wiring is done.

Parts: battery pack (for four or eight batteries)

Step 11: Camera mount

Step 11: the camera mount closes the battery compartment

Slide the camera mount over the open side of the battery compartment. It keeps the battery pack in place and later holds the adapter for your camera (see Camera Mount on the 3D printing page).

Parts: camera mount (printed, camera_mount.stl)

Step 12: Camera mount screws

Step 12: screws from the sides and the top hold the camera mount

Fix the camera mount with screws from both sides and from the top.

Parts: 6 × M2 self-tapping screw

Step 13: Powerbank

Step 13: the powerbank goes on top of the chassis

Place the powerbank in its compartment on top of the chassis. It fits snugly; two adhesive pads keep it from shifting. It can be at most 135.5 × 71 × 18 mm (L × W × H).

Parts: powerbank, 2 × adhesive pad

Step 14: Wheels

Step 14: the wheels go onto the motor shafts

Push the wheels onto the motor shafts.

Parts: 2 × wheel

Decks and sensors

Steps 15 to 22 add the electronics, the LiDAR and the camera on top of the frame. The drawings from step 16 on are rendered from the STL files; again, the dashed magenta lines show where a part goes.

Step 15: Breadboard parts

Step 15: the Teensy and the BNO055 IMU plug into the breadboard

Push the Teensy 4.0 into the breadboard. The drawing also shows the BNO055 IMU, which is optional. The wiring follows the Fritzing view on the Electronics page.

Parts: 400-point breadboard, Teensy 4.0, BNO055 IMU (optional)

Step 16: Raspberry Pi deck

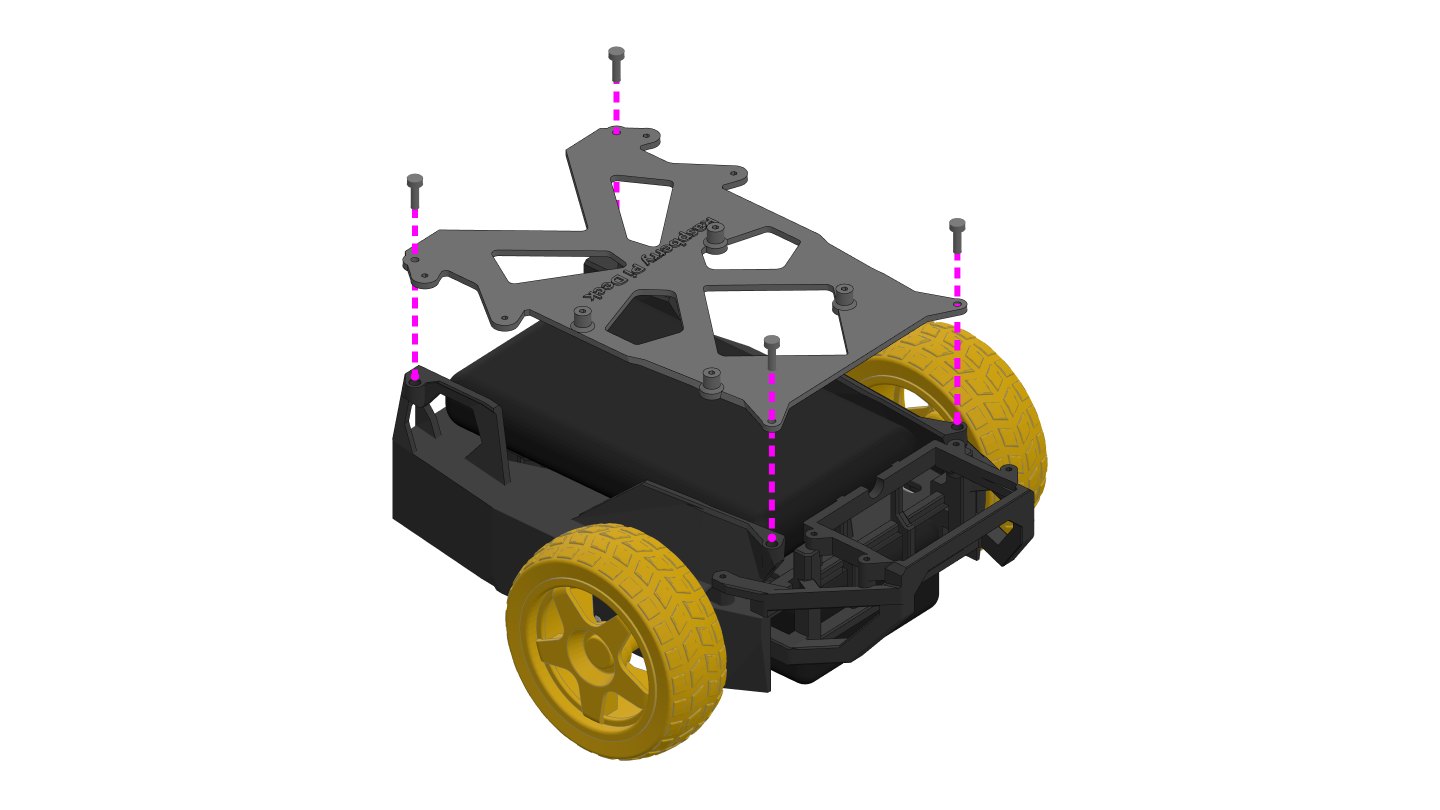

Step 16: the Raspberry Pi deck goes on top of the chassis, with four screws into the threaded inserts

Place the Raspberry Pi deck on top of the chassis, over the powerbank. Fix it with four M2 × 8 mm screws into the threaded inserts from step 1. With a Jetson Nano, use the Jetson Nano deck instead. It goes on the same way; only its mounting holes for the board differ.

Parts: Raspberry Pi deck (printed, raspberry_pi_deck.stl), 4 × M2 × 8 mm screw

Step 17: Raspberry Pi

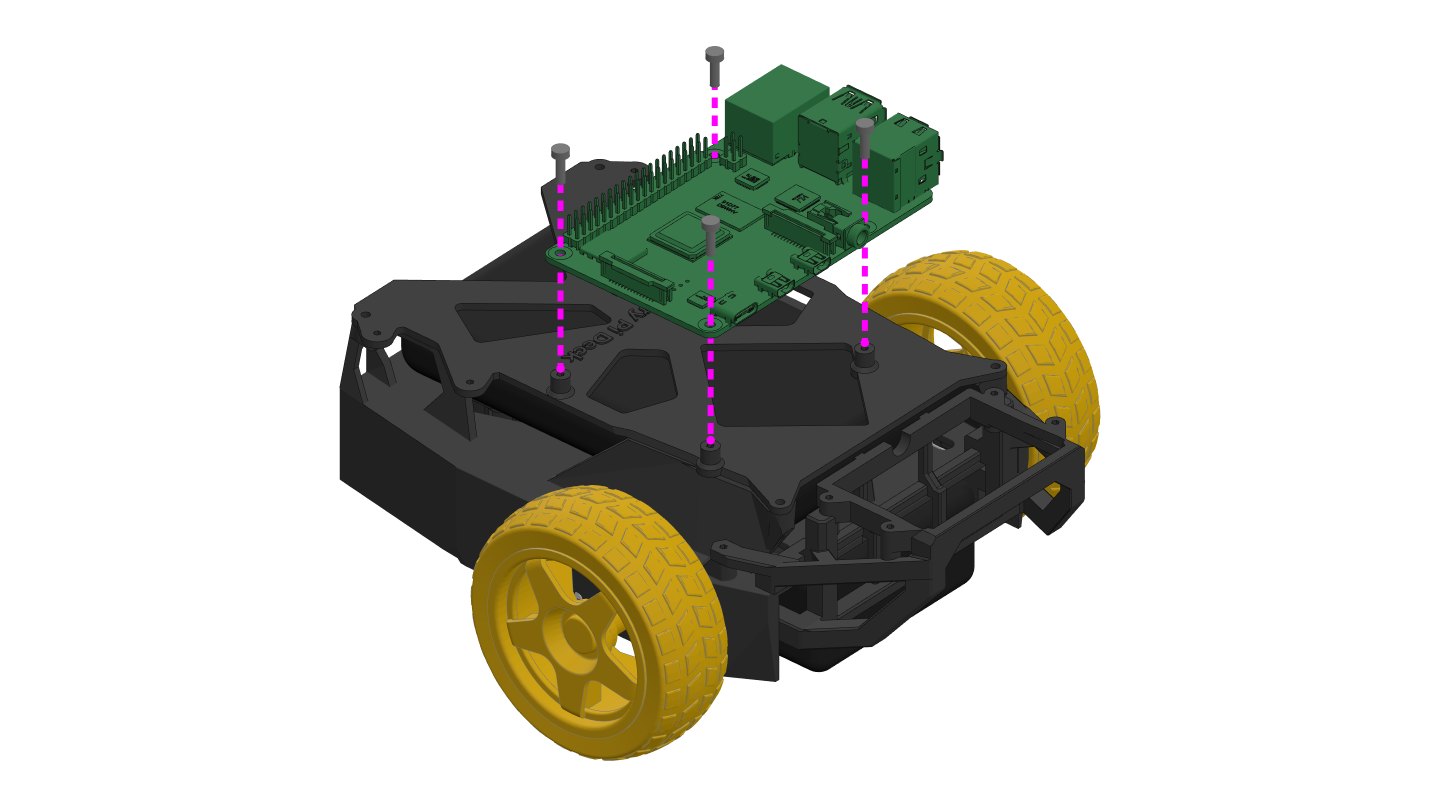

Step 17: the Raspberry Pi goes onto the four bosses of the deck

Press four M2 brass threaded inserts into the bosses of the deck, as in step 1. Then screw the Raspberry Pi 4 onto them with four M2 × 8 mm screws, with its USB and Ethernet ports toward the left wheel.

Parts: Raspberry Pi 4 B, 4 × M2 brass threaded insert, 4 × M2 × 8 mm screw

Step 18: Breadboard

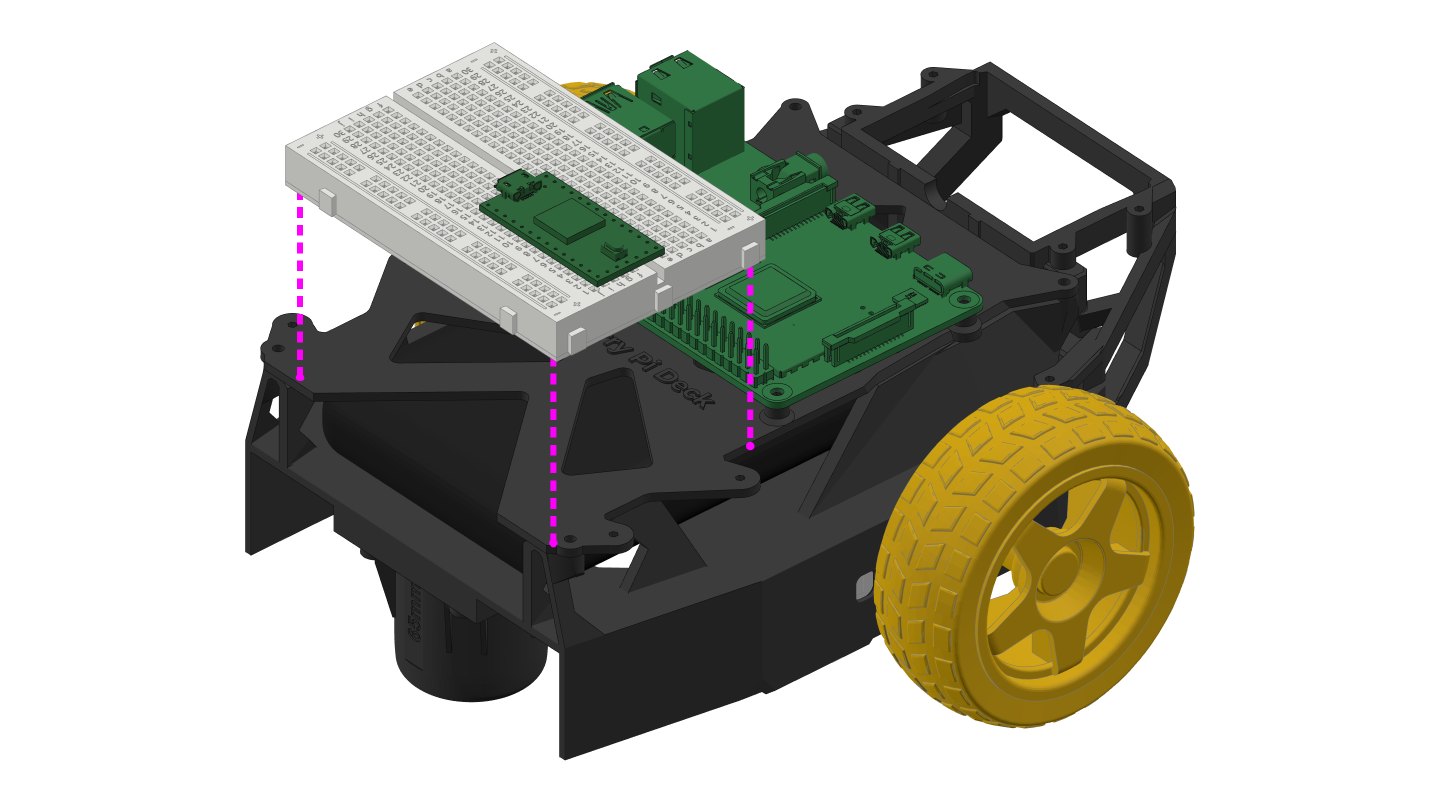

Step 18: the breadboard goes onto the back of the deck

Place the breadboard from step 15 on the back of the deck, behind the Raspberry Pi. Fix it with a Velcro strap, or with the adhesive tape on the bottom of the breadboard.

Parts: breadboard from step 15, Velcro strap (or the breadboard's adhesive tape)

Step 19: LiDAR platform

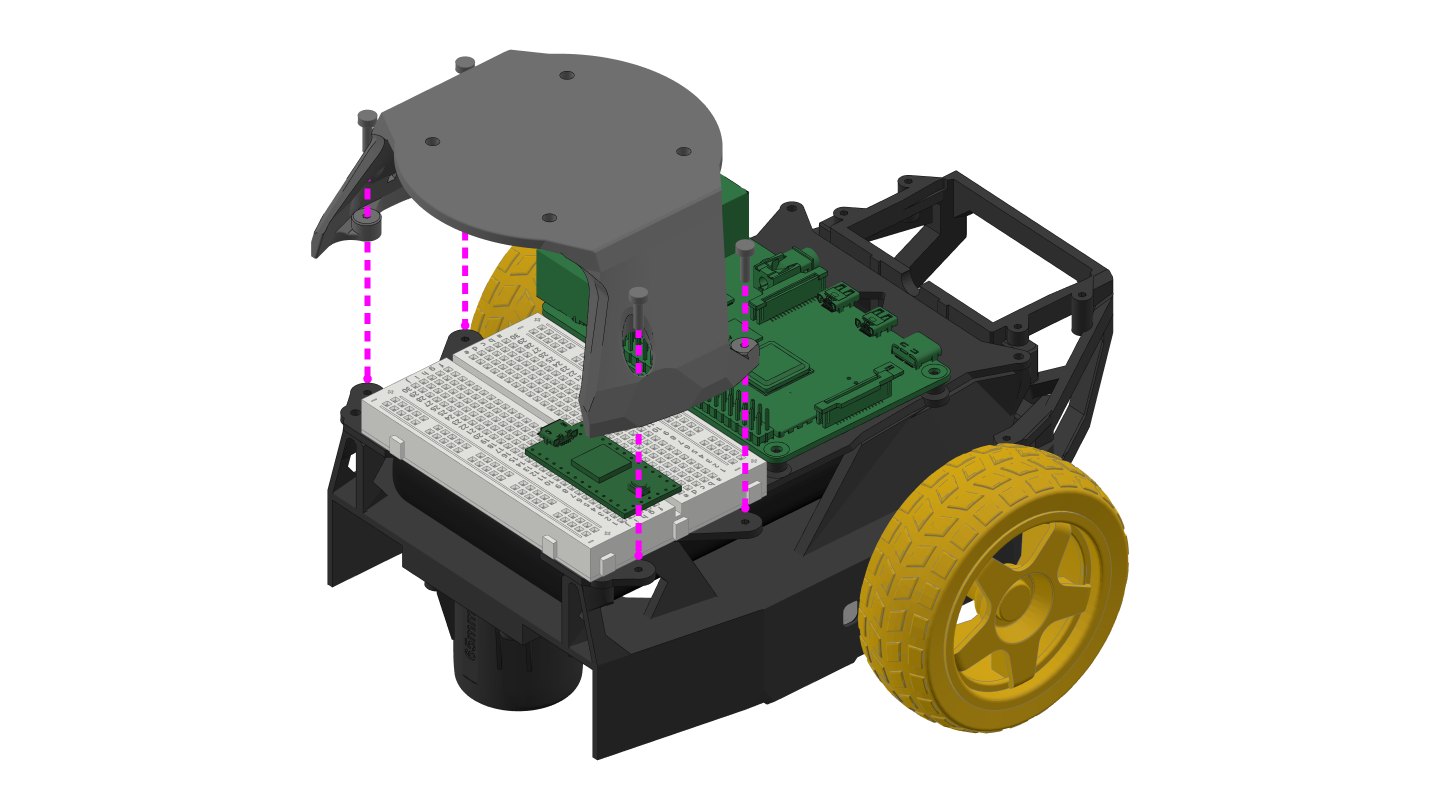

Step 19: the LiDAR platform goes over the breadboard, with four screws through its feet into the deck

Place the LiDAR platform over the breadboard and fix its four feet to the deck.

Parts: LiDAR platform (printed, platfom_rplidar_a2.stl), 4 × M2 self-tapping screw

Step 20: LiDAR

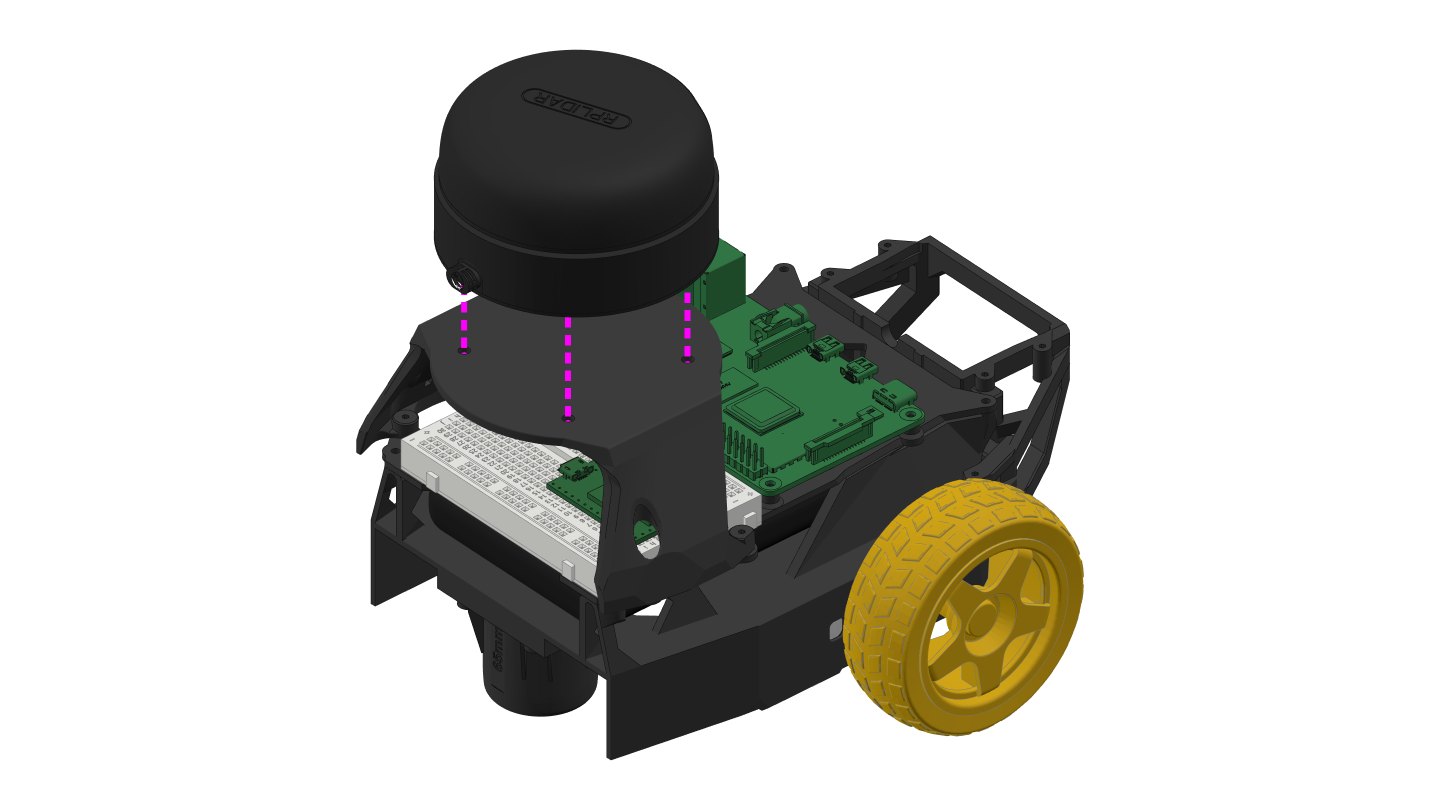

Step 20: the RPLiDAR A2 goes on top of the platform

Put the RPLiDAR A2 on the platform and screw it on from below with four M3 screws, through the four holes in the platform.

Parts: SLAMTEC RPLiDAR A2 M8, 4 × M3 × 6 mm screw

Step 21: USB adapter holder

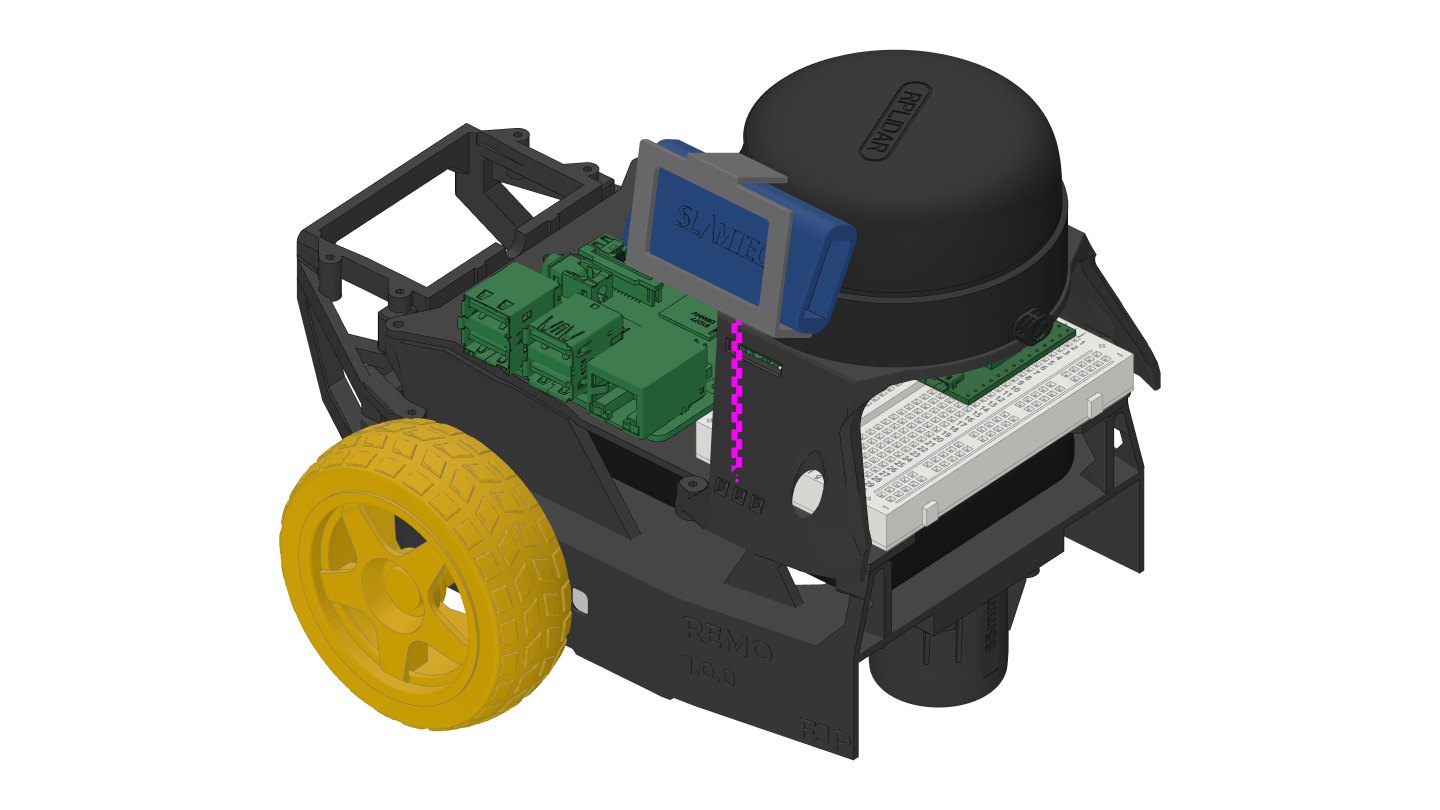

Step 21: the holder with the SLAMTEC USB adapter goes onto the side of the LiDAR platform

Put the SLAMTEC USB adapter into the printed holder, then clip the holder onto the left side of the LiDAR platform.

Parts: SLAMTEC holder (printed, slamtec_holder.stl), SLAMTEC USB adapter (comes with the LiDAR)

Step 22: Camera

Each camera has its own printed adapter. Screw the adapter onto the camera mount from step 11 with four M2 self-tapping screws. Then set the camera into the adapter, where its weight holds it, or fix it with four more M2 self-tapping screws (optional).

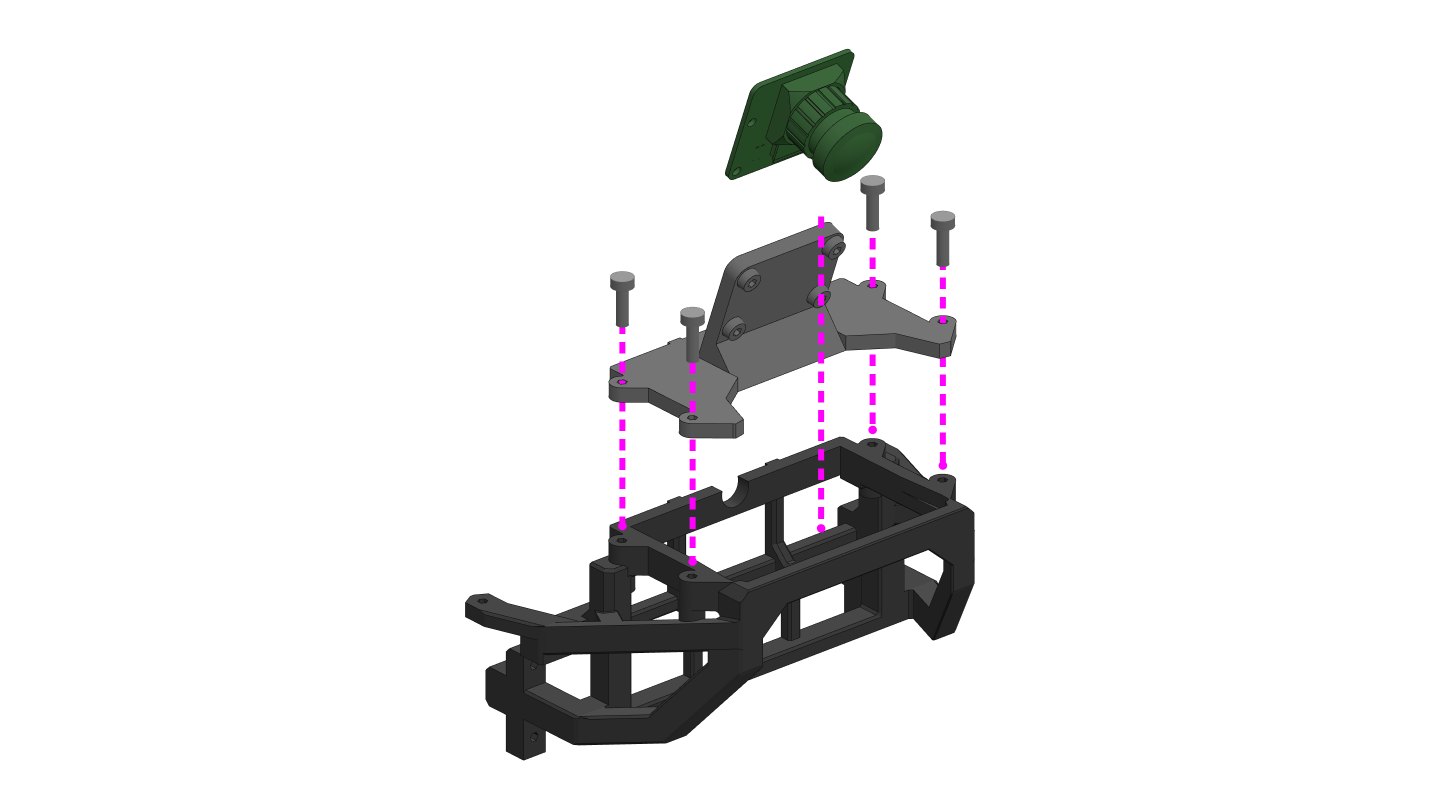

Step 22: the Raspberry Pi Camera holder goes on top of the camera mount

Parts: Raspberry Pi Camera holder (printed, Raspberry_pi_CAM_holder.stl), Raspberry Pi Camera v2, 4 × M2 self-tapping screw (4 more to screw the camera in, optional)

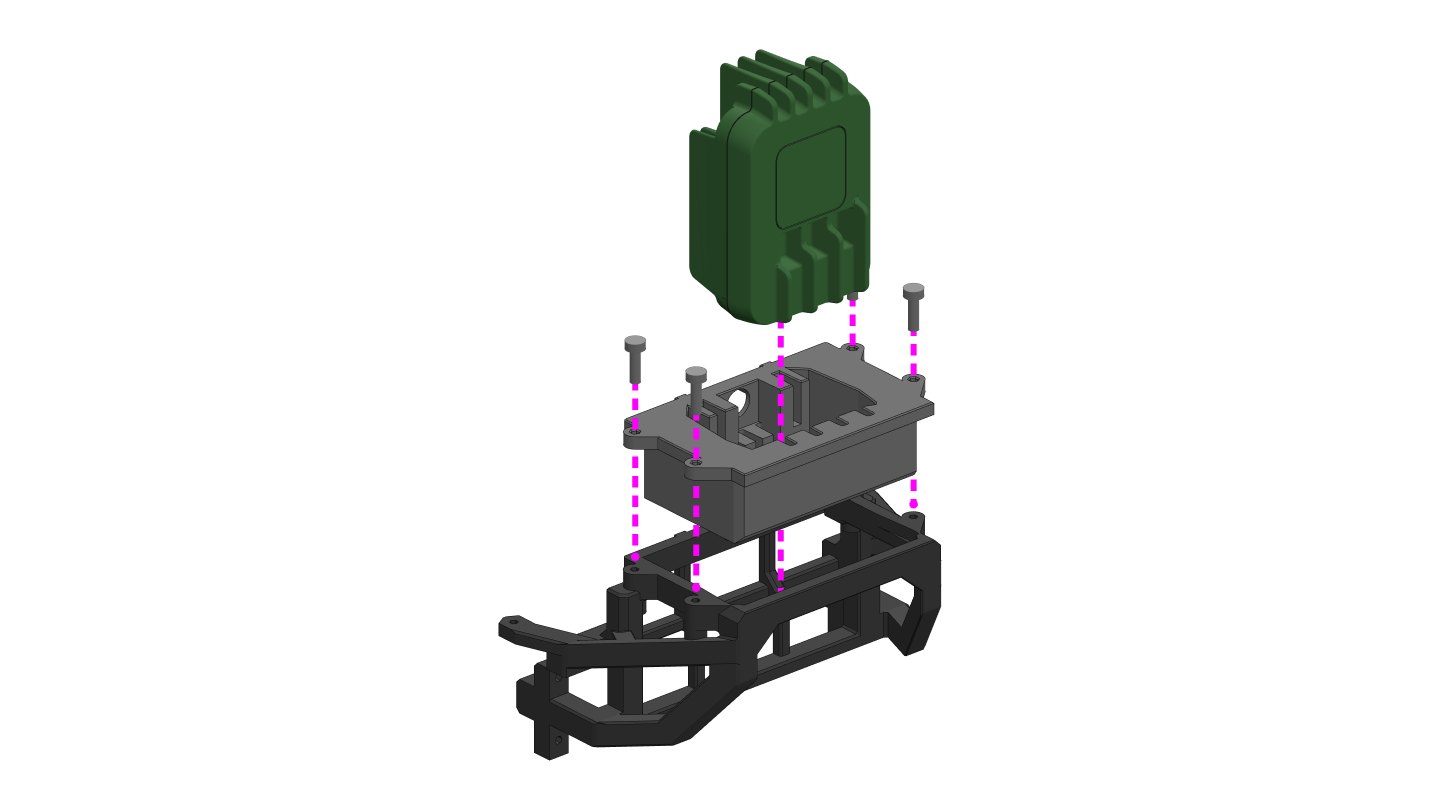

Step 22: the OAK-1 adjustment mount goes on top of the camera mount

Parts: OAK-1 adjustment mount (printed, OAK-1_adjustment_mount.stl), OAK-1, 4 × M2 self-tapping screw (4 more to screw the camera in, optional)

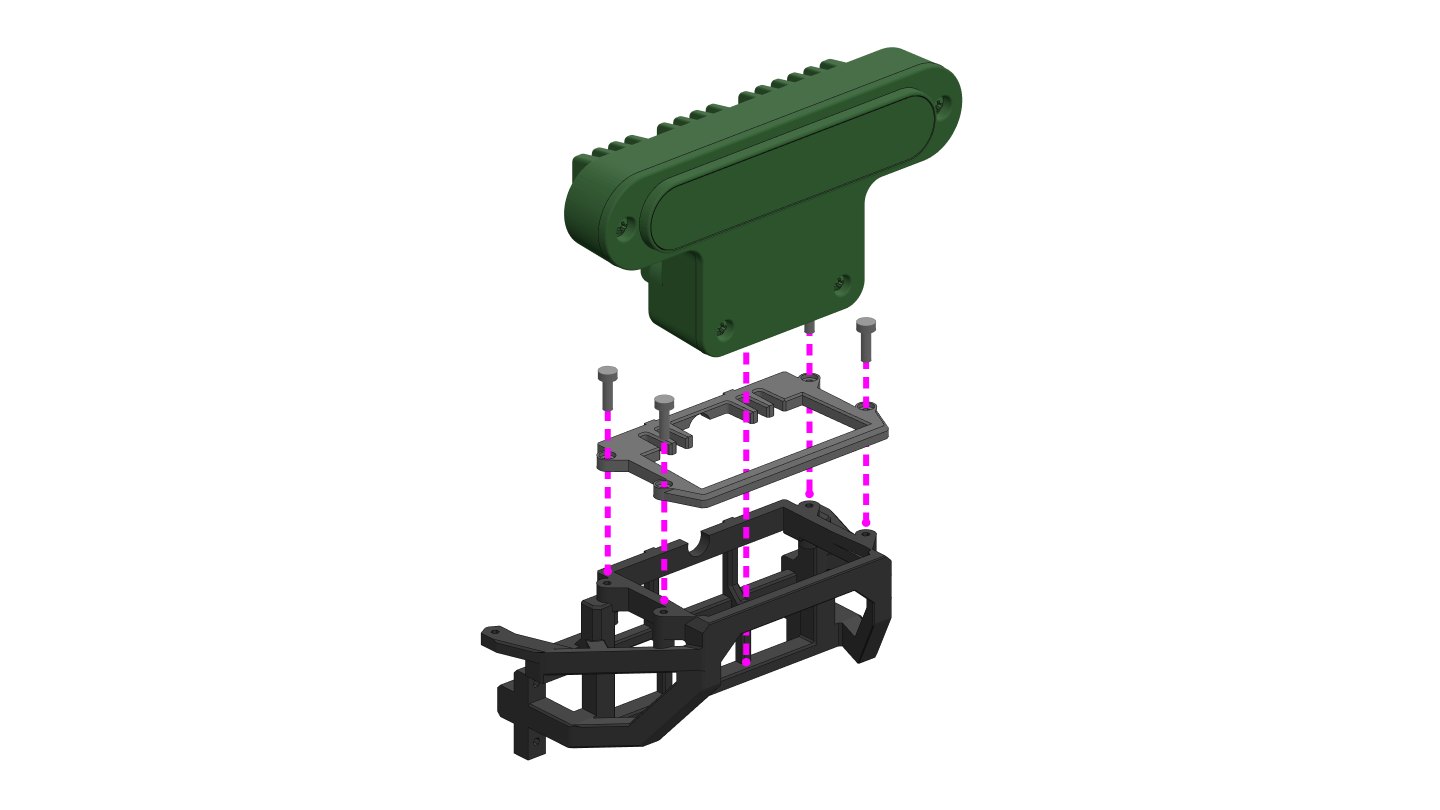

Step 22: the OAK-D adjustment mount goes on top of the camera mount

The OAK-D covers the adapter's screw holes, so screw the adapter on before you attach the camera.

Parts: OAK-D adjustment mount (printed, OAK-D_adjustment_mount.stl), OAK-D, 4 × M2 self-tapping screw (4 more to screw the camera in, optional)
